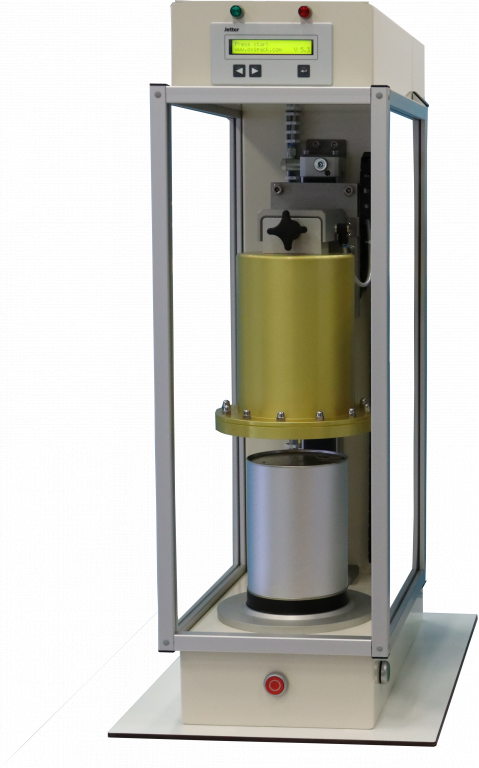

Oxipack Can Leak Tester
The CLT measures according to the non-destructive detection of leaks in packages by the vacuum decay method, ASTM F2338
Oxipack Can Leak Tester (CLT) is the solution for testing different types of cans.
The CLT makes use of pressure difference as a leak testing method. You can use the CLT for different types of cans. For example, it can be used for metal cans or composite carton cans with or without paper labels. Its patented, FDA-approved flexible membrane is pre-formed to match the exact shape of your packaging embracing the pack and protecting its contents.
Thanks to its pre-formed membrane, it is possible to create a very small measuring space around the packaging and a deep vacuum in the test chamber while protecting the seals and packaging. Without any change in its settings, the CLT can detect micro-leaks as well as larger leaks or open packs. The Can Leak Tester is able to test different package sizes and filling weights (with different changeable clock heads), allowing quick and efficient testing and objective results.
Features
- Non-destructive
- Accurate
- Easy to operate
- Direct result
- Robust design
Dimensions and Weight   580 x 400 x 878mm (Ixwxh) 62KG
Materials    Powder coated steel, Annodized aluminium,                            Polycarbonate, Rubber
Power supply             100 – 230V 50/60HZ
Air supply                 5,5 – 8 bar
Compliance and IP rating    CE IP40
Leak detection method      ASTM F2338
Minimum leakage          > 0,9 cm3 /min
Maximum testing capacity   2P/M
Connections  USB/Ethernet export 24VDC logic (free programmable)
Packaging type and size    Standard can diameters include Ø75mm, Ø99mm, Ø127mm, Ø153mm, …
- Mains cassette cord
Laboratory Requirements
| Temperature | ||
| Operation | -10 °C to 40 °C |
Accessories
Recommended
- 3052010526 In Use Cover for Indicator
- 2050013351 Indicator Stand
- 1100011297 Relay Box
Recording data
- 3074010266 RS-232 Cable 9F-9F
- 3074010507 RS-232 to USB Adaptor
- 1120015779 ATP2 Thermal Printer
600002028 AdamDU Data Collection Program
